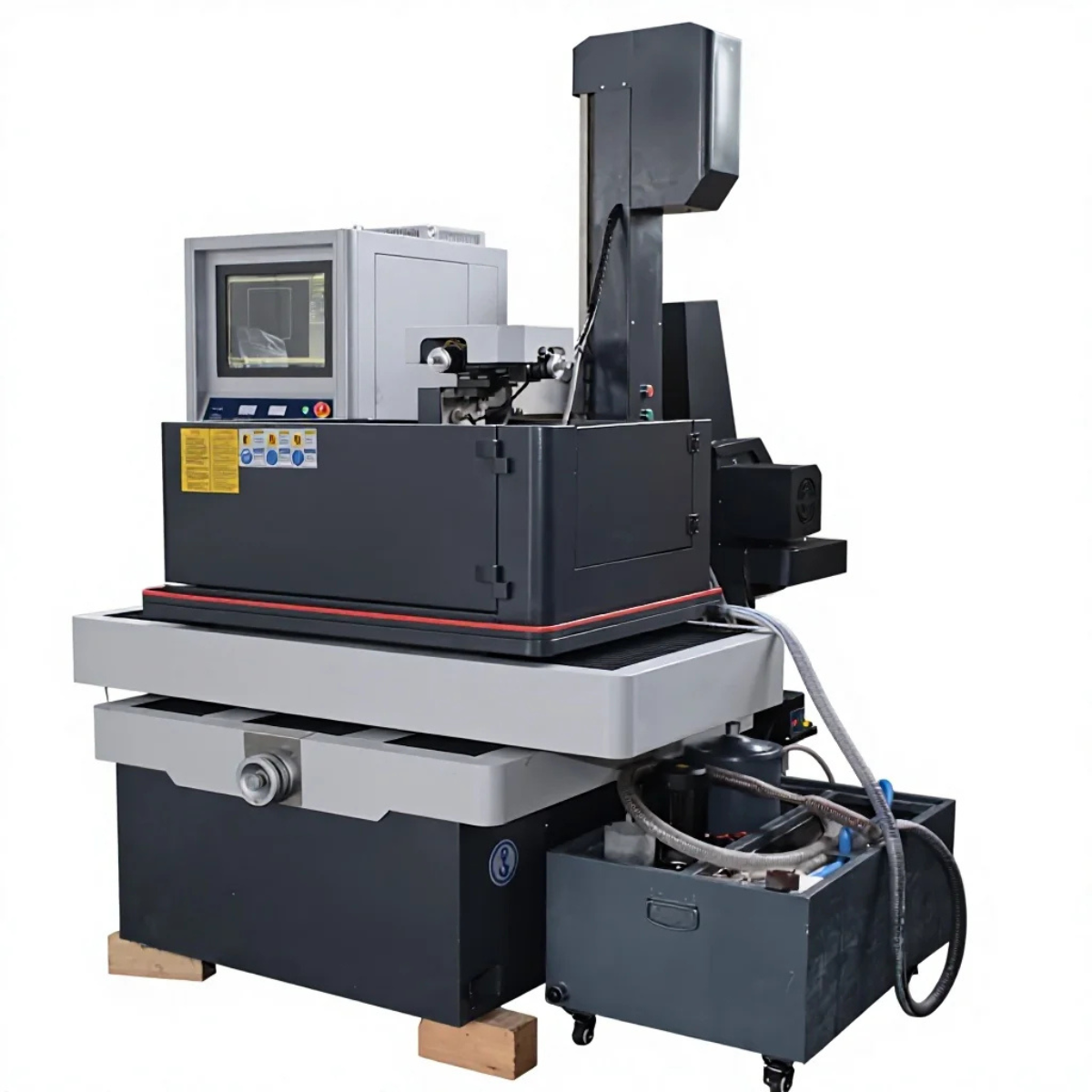

HYPERCUT SERIES
HyperCut Series
Engineered to Cut Beyond Limits — 2× Faster.
When speed is the deciding factor, HyperCut is Berlin's answer — the fastest Wire EDM in its class, cutting up to 2X faster than conventional machines. Servo-driven XY & drum, UV-axis linear motor, and Sonic smart control with wireless MPG.
APPLICATIONS
Built for the parts that matter.
AUTOMOTIVEAEROSPACEMEDICALDIE & MOLDPRECISION ENGINEERING
HIGHLIGHTS
Engineered advantages.
- Up to 300 mm²/min — 2× faster than standard
- Micron-level accuracy at speed
- Servo drive on XY & drum
- UV-axis linear motor for superior taper finish
- Sonic smart control + wireless MPG
- Upgraded wire tension for high feed rates
- Energy-efficient, non-stop operation
TECHNICAL SPECIFICATIONS
Specification sheet.
Values below are editable placeholders. Final specifications are configured per order.
| Models | HYPER 300 / HYPER 500 / HYPER 600 / HYPER 800 |
| Table travel X×Y (mm) | 300×400 up to 1000×800 |
| Max workpiece weight (kg) | 800 – 2000 |
| Cutting accuracy | 0.010–0.015 mm |
| Max cutting speed | 280–300 mm²/min |
| Wire diameter | Ø 0.12–0.25 mm |
